10g Accuracy PVC Additives Automatic Weighing Chemical Dosing System For PVC Extruder Line

PVC chemical Additives automatic weighing dosing machine for Rigid & soft PVC extruder line

Application and introduction

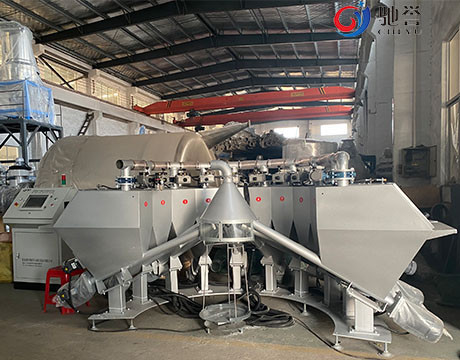

  The PVC additives auto weighing system – We developed this auto weighing system to instead of traditional old manual weighing. It could auto weigh the additives for the pvc extrusion production, such as, stearic acid, wax, titanium dioxide, whitener, carbon black etc. this auto weighing system could weigh the quantity for one batch usage automatically. This system could avoid the mistake of manual weighing and also keep the workshop clean. This system could auto weigh 5-12 kinds of powder or granules additives. The accuracy is within 10g.

1.Main technical data:
Weighing error: around 10g/bin, total weighing error is within 10g
Weighing time: around 15kg/120sec
Feeding method: by screw
Feeding motor power: 1.5kw
Feeding motor number: 1-10sets
Feeding speed adjusting: intelligent inverter
Stirring motor: 200w*2sets
Install power: 1.5kw
Actual running power: <3kw
Space required: 3400*2400*1100(L*W*H)

2. Machine configuration
Storage part:
Bin number: 1-10sets
Bin volume: 150L(suitable for 70kg material)
Bin material: stainless steel

Weighing part:
Metering sensor: Mettler Toledo, Switzerland brand
Weighing module: Siemens, German brand

Electrical part:
PLC Siemens, German brand
HMI Siemens, German brand
Inverter Taida/ABB
Contactor Siemens or Schineder

Main Features of whole system:

* High Accuracy: it adopts top-quality weighing sensor and advanced design to reach high accuracy according to the formula.

* Intelligent Speed Regulation:According to the weight of the different additive in the formula, the system can adjust the feeding speed automatically. The high power feeding motor is installed in this system, so the feeding will be faster, stable and accurate

* Reliable: The control system adopts international famous brand Siemens products.

* Easy Installation: This system is composed of several individual small silos. the cables between the silos and the control cabinet are connected well before shipment. It is easy for the user to install and use.

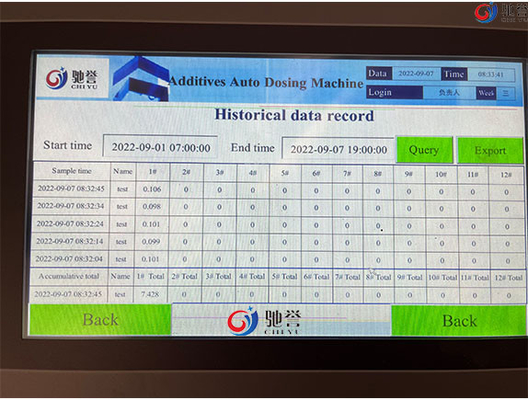

* Easy Operation:Friendly operation interface with diagram and symbol for easy operation. The user doesn't need to revise the program. The user could set parameters on the touch screen to meet different requirement.

* Quality Guarantee:The silos are made of 304 stainless steel. The electrics are from international famous brands that have CE or UL certificate.
