Product Details:
|
| Name: | PVC Auto Weighing Mixing System | Used For: | PVC,food,rubber,chemical |
|---|---|---|---|
| Material: | PVC,Caco3,powder,liquid | After-sales Service: | Video And Online Support |
| PLC: | Siemens 1200+Wincc | Inverter: | ABB |
| High Light: | Wood Powder Dosing System odm,1500Kg/h Powder Dosing System,Caco3 automatic powder weighing machine |
||
Automatic Feeding Weighing Mixing Compounding System For PE Wood Plastic Extrusion
Application and introduction
The application of automation technologies in the field of bulk solids transport - comprising both mechanical systems (screw conveyors, bucket elevators, chain conveyors...) and also pneumatic systems (conveying under overpressure and by vacuum, fluidized bed chutes...) - has a very strong impact on production and productivity. It allows to transport even very large bulk quantities in a reliable and safe manner over great distances without human intervention.
Main Technical Parameters
| wood powder and Caco3 Powder scale weighing range | ≤600 Kgs |
| Additives scale weighing range | 1-50 Kgs |
| Powder weighing accuracy | Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg. |
| PE weighing accuracy | Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg. |
| Conveying capacity | 1-1500Kg/h |
| Transmission distance | Horizon≤80m; Vertical≤20m |
| Pipe diameter | DN50-100 |
| Air source | Root's Blower |
For large scale PVC pipe/profile production factory, Advanced automatic weighing compounding conveying system is essential, Traditional mixing method is that people weigh and batch material manually, then move the mixed material to extruder also manually, this old way just fit for the small factory, and has many defects:
1.Artificial mixing is easy to make a mistake, because this is a repetition work, so worker is tired easily. the weighing precision is not assured.
2.Labour intensity is large, human cost is high from long term view.
3.Chemical raw material harms the worker’s health.
In order to solve these problems, our company design this PVC automatic mixing weighing conveying system which the computer can automatically control weighing and batching, and feeding to extruder.the complete PVC mixing system consists of:
1.Loading station(Wood powder loader+Caco3 loader+PE loader).
2.Pneumatic conveying system.
3.Wood powder storage silo.
4.Vacuum conveyor with automatic weighing system for mixer.
5.Mixing machine unit.
6.Compound storage silo.

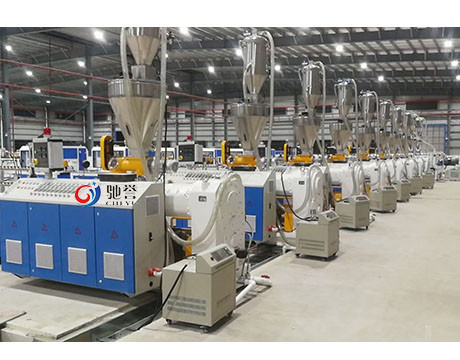

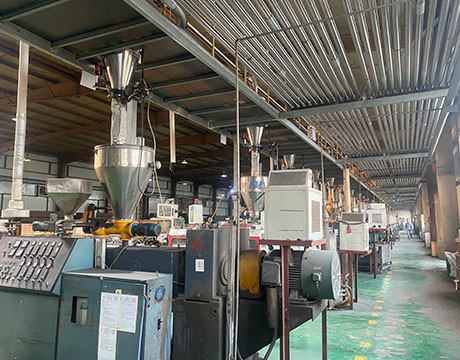

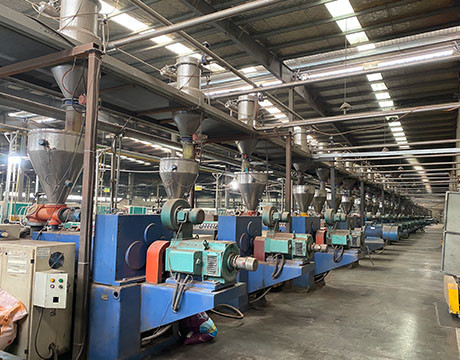

7.Automatic feeding system for extruder.
