Product Details:
|
| Name: | PVC Auto Weighing Mixing System | Used For: | Plastic,food,rubber,chemical |
|---|---|---|---|
| Material: | PVC,Caco3,powder,liquid | After-sales Service: | Video And Online Support |
| PLC: | Siemens 1200+Wincc | Inverter: | ABB |
| High Light: | ABB Powder Dosing System,Automatic PVC Powder Dosing System,600Kgs powder conveying system |
||
Automatic Dosing Mixing Conveying System For PVC Window Profiles Extruder
Application and introduction
For large scale PVC pipe/profile production factory, Advanced automatic weighing compounding conveying system is essential, Traditional mixing method is that people weigh and batch material manually, then move the mixed material to extruder also manually, this old way just fit for the small factory, and has many defects:
1.Artificial mixing is easy to make a mistake, because this is a repetition work, so worker is tired easily. the weighing precision is not assured.
2.Labour intensity is large, human cost is high from long term view.
3.Chemical raw material harms the worker’s health.

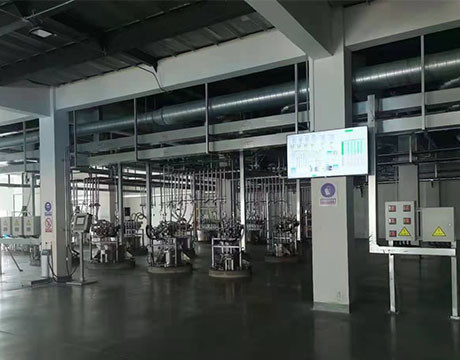

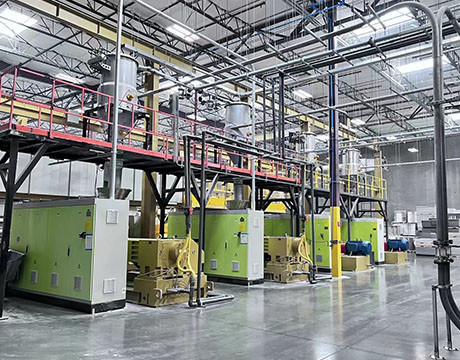

In order to solve these problems, our company design this PVC automatic mixing weighing conveying system which the computer can automatically control weighing and batching, and feeding to extruder.the complete PVC mixing system consists of:

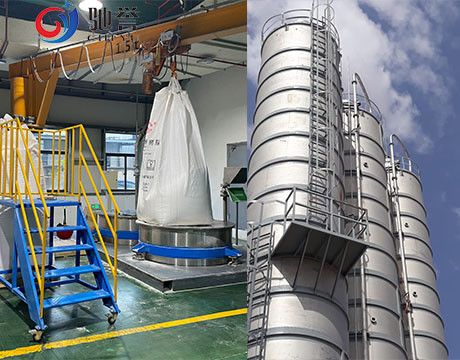

1.Loading station(PVC loader+Caco3 loader).
2.Pneumatic conveying system.
3.PVC/Caco3 storage silo.
4.Vacuum conveyor with automatic weighing system for mixer.

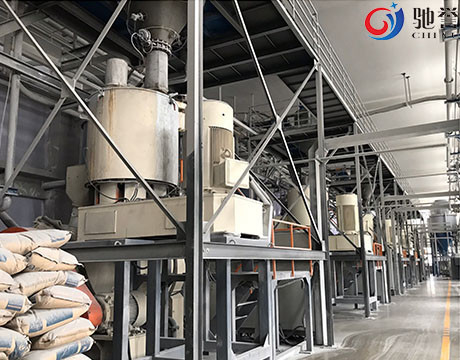

5.PVC mixer unit.
6.Compound storage silo.
7.Automatic feeding system for extruder.
| PVC and Caco3 Powder scale weighing range | ≤600 Kgs |
| Additives scale weighing range | 1-50 Kgs |
| Powder weighing accuracy | Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg. |
| Oil weighing accuracy | Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg. |
| Conveying capacity | 1-1500Kg/h |
| Transmission distance | Horizon≤80m; Vertical≤20m |
| Pipe diameter | DN50-100 |
| Air source | Root's Blower |
