Product Details:
|
| Name: | Auto Weighing Mixing System | Used For: | Plastic,food,rubber,chemical |
|---|---|---|---|
| Material: | PVC,Caco3,powder,liquid | After-sales Service: | Video And Online Support |
| PLC: | Siemens 1200+Wincc | Inverter: | ABB |
| High Light: | PVC Powder Dosing System,Caco3 Powder Dosing System,200Kgs auto weighing machine |
||
PVC Powder Auto Feeding Dosing Weighing System For PVC Pipe Extrusion Line
Application and introduction

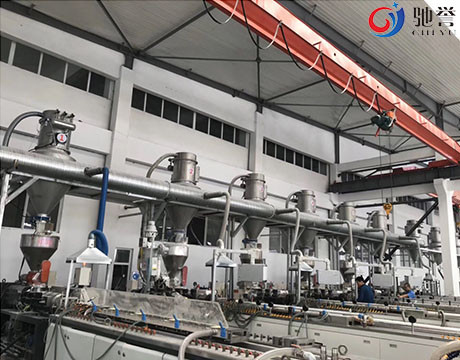

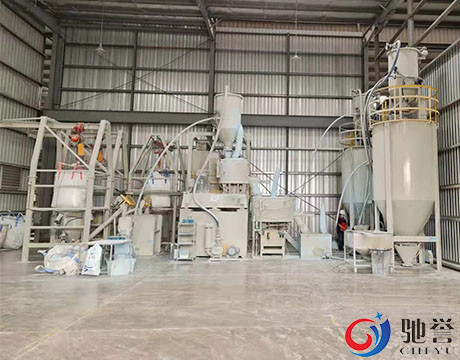

This system includes automatic feeding dosing mixing pneumatic conveying system, vacuum conveying system, etc. it is suitable for automatic dosing, mixing and conveying of all powder and chemical additives to plastic extruder. It has the advantages of high automation, no dust and high efficiency; Suitable for PVC wall panel, PVC pipes, Window profiles, SPC floor and other PVC industry customers.
| Powder scale weighing range | ≤200 Kgs |
| Oil scale weighing range | 1-50 Kgs |
| Powder weighing accuracy | Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg. |
| Oil weighing accuracy | Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg. |
| Conveying capacity | 1-1500Kg/h |
| Transmission distance | Horizon≤80m; Vertical≤20m |
| Pipe diameter | DN50-100 |
| Air source | Root's Blower |
