Automatic Dosing System

Large Image : Automatic Dosing System

Product Details:

Place of Origin:	China
Brand Name:	ChiYuMixer
Certification:	3C,ISO9001
Model Number:	dosing system

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 1000-100000
Packaging Details:	Wooden box,plastic film
Delivery Time:	30-45 work day
Payment Terms:	L/C, T/T
Supply Ability:	1-5 sets per month

Contact Now

Automatic Dosing System

Description

Name:	Auto Dosing Mixing System	Used For:	PVC,rubber,chemical,food Industry
Marerial:	Carbon Black,Oli	Advantage:	High Accuracy
PLC:	Siemens 1200+Wincc	Inverter:	ABB
Highlight:	High accuracy Rubber Mixer Machine OEM , chemical powder Rubber Mixer Machine , automatic dosing system 160L

automatic dosing system

About automatic dosing system

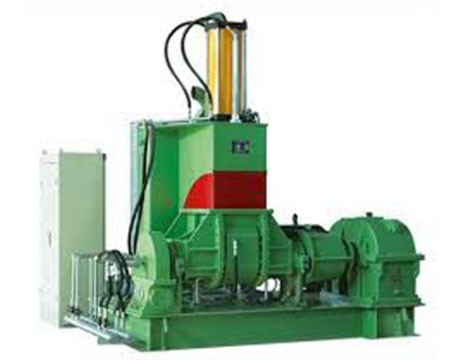

Rubber Products Production Line with Kneader mixer
Rubber products production line with kneader mixer is designed for all kind of rubber products which requires single stage or multi-stage mixing process. The production line mainly contains Automatic Multi-ingredient Formula Weighing System,Kneader mixer,Bucket elevator ,Rubber open mill ,batch-off etc.

Features:

This system is suitable for banbury capacity from 55L to 160L.

It is applicable for the factory building structured of 1-storyey or 2-storey, saving the construction cost for new factory building.

This system is to fulfill the storage, conveyance, weighing and dosing of the major ingredients, such as carbon black, white fillers, and oils.

The storage area are separated from the production area.

This system had integrated mixer upstream equipment, banbury, rubber scale in one program, and realize the online control.

This system is realized the production automation and management information systemization.

This system mainly applicable for production of rubber products, plastic products, shoes, rubber cable materials, chemical materials.

This system had combined vacuum type conveying and screw type weighing, less space occupancy (1-2 meters higher than full vacuum system) and high weighing accuracy(+/- 50g-0.5%).

Main Technical Parameters:


			Powder scale weighing range
			≤200 Kgs

			Oil scale weighing range
			1-50 Kgs

			Powder weighing accuracy
			Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg.

			Oil weighing accuracy
			Static≤±0.1% F.S, dynamic:±0.1--±0.5Kg.

			Conveying capacity
			1-1500Kg/h

			Transmission distance
			Horizon≤80m; Vertical≤20m

			Pipe diameter
			DN50-100

			Air source
			Root's Blower
