Product Details:
|
| Name: | V Powder Mixer | After-sarles Service: | Video And Online Support |
|---|---|---|---|
| Application: | Food,Medicine,Plastic,Chemical Powder | Material: | SUS304,316L |
| Loading Capacity: | 100-10000L | Mixer Type: | Ribbon,Screw,vacuum Conveyor |
| High Light: | SUS316L v type blender,10000L v type blender,SUS316L chemical powder mixing machine |
||

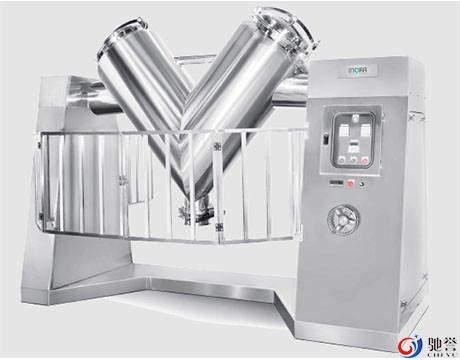

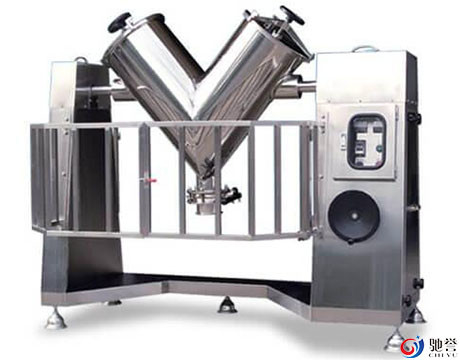

V blender and powder mixer for mixing powder with dosing system
Scope of Application:
ChiYu Co., Ltd. is a professional supplier of Mixer, Powder Mixer and V Type Mixer, it is suitable for 3-in-1 coffee powder,milk powder, flour, seasoning powder, food additives, milk tea powder, cocoa powder, chinese herbs, western medicine, grains powder, ice cream powder and chemical mixing.apply for mixing powder, granule, lubricant additive, binder, essence oil of flavor of Western medicine, Chinese medicine and health food.

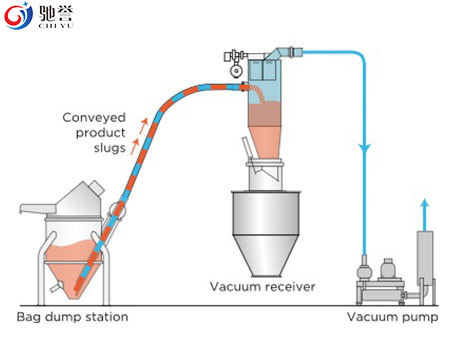

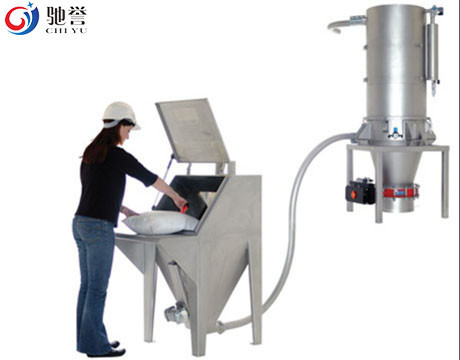

Granules or powder are sucked directly from container into mixing machine through conveyor pipe by vacuum.
The free powder are collected by sanitary grade dust collection device.
It is a device with dust-free, effort-saving, manpower-saving and non-contamination.
Function:
Powder Mixing:Mix different kind of powder materials to required uniformity.
Granule Mixing:
Mix the granules with lubricant, binder or essence oil of flavor.
Mix different kind of granules to required uniformity.
Feature:
Convenient and precise for cleaning.
Mixing ratio up to 1 / 10,000.
With safety railing and interlock device.
Advantage:
(1) Large loading factor and small equipment area.
(2) With the shear blade inside, the micro mixing can be achieved.
(3) According to the production demand, the equipment can be used as a large-scale machine, and the price is cheaper than other mixers.
Technical data:
| Type | Total Volume(M³) | loads coefficient | Motor power KW | Size(L×W×H) | Net weight(kg) |
| LT-0.1 | 0.1 | 0.4-0.8 | 3 | 1190×740×770 | 330 |
| LT-0.3 | 0.3 | 0.4-0.8 | 4 | 2030×630×980 | 720 |
| LT-0.5 | 0.5 | 0.4-0.8 | 7.5 | 2320×730×1130 | 980 |
| LT-1 | 1 | 0.4-0.8 | 11 | 2800×920×1320 | 1700 |
| LT-1.5 | 1.5 | 0.4-0.8 | 11 | 2800×920×1320 | 1800 |
| LT-2 | 2 | 0.4-0.8 | 15 | 3180×1020×1550 | 2100 |
| LT-3 | 3 | 0.4-0.8 | 18.5 | 3310×1120×1640 | 3000 |
| LT-4 | 4 | 0.4-0.8 | 22 | 3750×1290×1820 | 3980 |
| LT-5 | 5 | 0.4-0.8 | 22 | 4220×1400×1990 | 4620 |
| LT-6 | 6 | 0.4-0.8 | 30 | 4220×1500×2100 | 6180 |
| LT-8 | 8 | 0.4-0.8 | 37 | 4700×1610×2260 | 8200 |
| LT-10 | 10 | 0.4-0.8 | 45 | 5520×2960×2720 | 9520 |
| LT-12 | 12 | 0.4-0.8 | 45 | 5720×3010×2840 | 9950 |
