Product Details:
|
| Name: | Bin Pump | Structure: | Conveyor System |
|---|---|---|---|
| Load Capacity: | 1000-2000kg/hr | Capacity: | 10kg-30t/h |
| High Light: | Pneumatic Conveying System 800kg/H,Pneumatic Conveying System 5000Kg/h,Solid Material pneumatic transportation system |
||

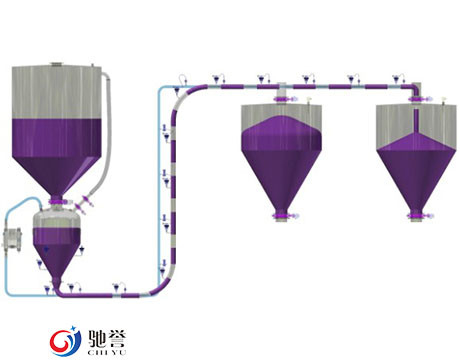

Dense Phase Pneumatic Conveying System
Product Description
Dense Phase Pneumatic Conveying System is essentially a conveying process that transfers the material with high pressure at low velocity and high product-air ratio. It is suitable for conveying of materials that are friable, fragile, abrasive, or agglomerated in nature.
Dense phase conveying system conveys bulk solids at long distances from single/multiple locations to single /multiple points preventing low material degradation. It transports abrasive materials with comparatively less wear and tear of the system and product as well. Compared to Mechanical conveying, long distance transportation is an added advantage in dense phase conveying.
The low conveying speed used in dense phase pneumatic systems helps preventing the material degradation and preserves the product quality and integrity. It is suitable to handle any kind of product, including fragile, abrasive and lumpy materials and blends.
| Name | Pneumatic comveying system |
| Used for | PVC,food,Chemical,rubber |
| Material | Powder,Pellet |
| Capacity | 800-5000Kg/h |
| Powder,Pellet | Siemens 1200+HMI |
| Inverter | ABB |
| Capacity | 10kg-30t/h |
| Capacity | Conveying system |
Dense phase transport has a high product/air efficiency ratio. The indicative ratio of air or gaseous fluid to the product is about 30L of gas per 1Kg of product. Thanks to the reduced amount of air needed, this system allows reduced energy consumption.
Pneumatic conveying systems offer the benefit of low maintenance costs: the number of spare parts and maintenance services needed to maintain the system running is limited.
Features
1.Minimal material degradation as the material is transported at low velocity.
2.Handles wide variety of material such as fragile, abrasive and friable as well as materials with high bulk densities.
3.Minimum wear and tear of the system.
4.Minimum Maintenance.
5.No material spillage, no dust emission, clean environment.
6.Low Noise operation.
7.Low air flow rate.
Application examples

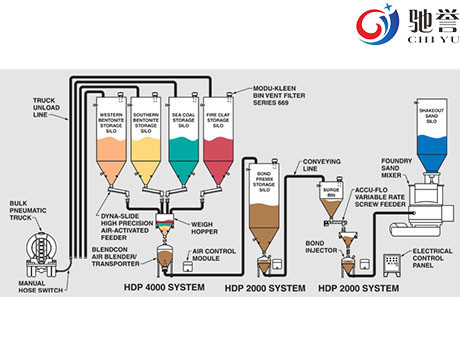

Transferring dosed products from the scales to the destination.
Conveying blends from the mixer to the destination.
Dense phase pneumatic conveying systems can be used together with any equipment, for example:
silos
screw conveyors
hoppers
big bag emptying stations
bag splitters and filters
Furthermore, they can be also used in ATEX settings thanks to the possibility to use nitrogen for the transport.
