Product Details:
|
| Name: | Additives Dosing Machine | Used For: | PVC Additives,Chemical,rubber |
|---|---|---|---|
| Feature: | High Accuracy High Efficiency | PLC: | Siemens 1200 |
| Inverter: | ABB | ||
| High Light: | 10g/bin Additive Dosing System,SUS304 Additive Dosing System,powder dosing device ISO9001 |
||

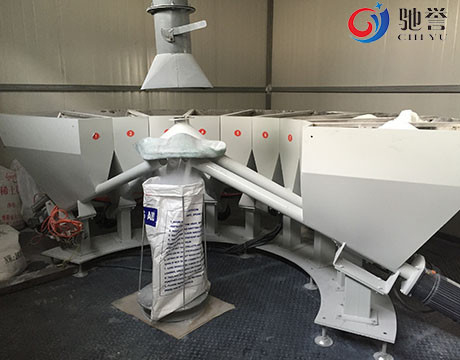

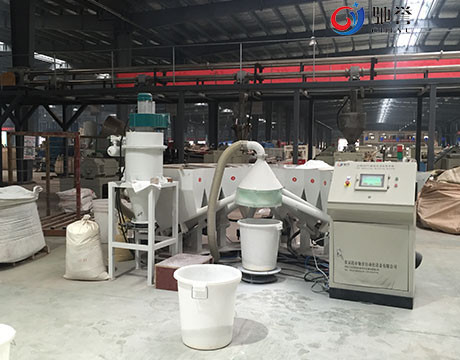

Additives automatic weighing dosing system for PVC window profile extrusion Line
1.Main technical data:
Weighing error: around 10g/bin, total weighing error is within 10g
Weighing time: around 15kg/120sec
Feeding method: by screw
Feeding motor power: 1.5kw
Feeding motor number: 1-10sets
Feeding speed adjusting: intelligent inverter
Stirring motor: 200w*2sets
Install power: 1.5kw
Actual running power: <3kw
Space required: 3400*2400*1100(L*W*H)
2. Machine configuration
Storage part:
Bin number: 1-10sets
Bin volume: 150L(suitable for 75kg material)
Bin material: stainless steel
Weighing part:
Metering sensor: Mettler Toledo, Switzerland brand
Weighing module: Siemens, German brand
Electrical part:
PLC Siemens, German brand

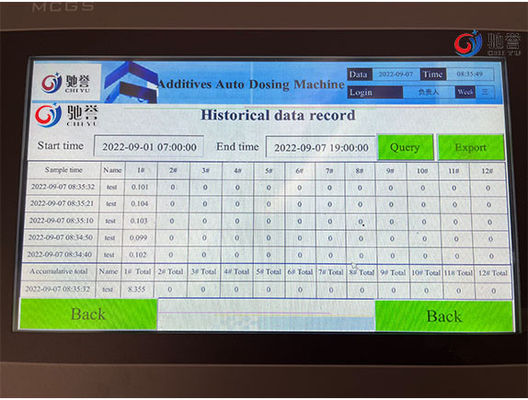

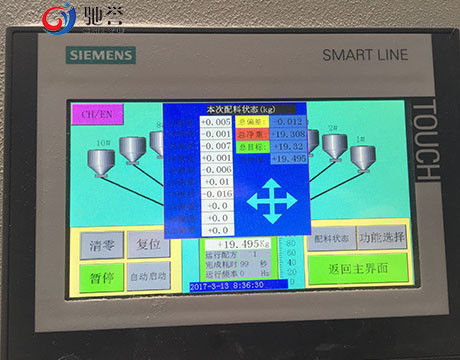

HMI Siemens, German brand
Inverter Taida/ABB
Contactor Siemens or Schineder
| Min.bin number | 3 |
| Max.bin number | 12 |
| Weighing speed | 20kg/120 seconds |
| Control accuracy | ±5g |
| the volume of loading hopper | 150 litres/70kg |
| Bin raw material | SUS304 |
Application and introduction
The PVC additives auto weighing system – We developed this auto weighing system to instead of traditional old manual weighing. It could auto weigh the additives for the pvc extrusion production, such as, stearic acid, wax, titanium dioxide, whitener, carbon black etc. this auto weighing system could weigh the quantity for one batch usage automatically. This system could avoid the mistake of manual weighing and also keep the workshop clean. This system could auto weigh 5-12 kinds of powder or granules additives. The accuracy is within 10g.
