Automatic Pallet Tube Chain Conveyor System Extruder Feeding Machine

Tube Chain Conveyor Automatic Conveying System Extruder Feeding Machine

Exclusively for the food industry
Our sales personnel and project managers are experts in all food processing sectors: biscuit products, bakery, confectionery,dairy products, ready meals, drinks, coffee,flavourings and many more besides. They are familiar with the standards applicable to them, their vocabulary and uses, and also with the issues specific to your business. They have interfaced hundreds of machines with our powder transfer networks: mixers, dispersers, syrupers, grinders, kneaders, sprinklers, sieves, dilution tanks,extruders,packaging machines, conches, mogul lines, churns.Over and above the simple conveying of food powders, ChiYu Technologie offers expert competence at every stage in the flow of dry products. Choice of type of storage, workshop organisation, dosing methods,continuous production or batch preparation. Our knowledge base is unique as it is built on thousands of projects delivered exclusively in food environments. We also have a library of hundreds of certified powders.

Main components
1. Storage, feeding of powder.
2. Vacuum comveyor.
3. Automatic dosing mixing system.
4. Automatic control system.

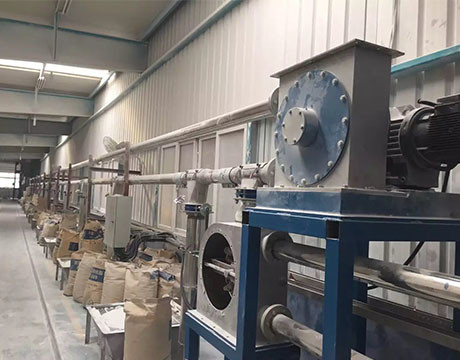

Tube chain conveyor is the continuous mechanical conveying equipment for fine powder, granule and massive materials.It is a good choice for below applications:
Industry of Fine Chemicals: dye, paints, coating, carbon black, titanium pigment, ferric oxide, ceramics powder, coarse whiting,fine particle calcium carbonate, bentonite, molecular sieve, kaolin, silica flower, active carbon and so on.
Pesticide Ore: urea, ammonium chloride, ammonium bicarbonate, soda powder, solid pesticide, tungsten powder, fish oil, copper fine powder, coal powder, rock phosphate, alumina powder and so on Building Material: cement, clay, yellow sand, quartz sand, clay powder, silica, limestone flour, dolomite fines, Wood chips, fiberglass, silicon dioxide, French chalk and so on.Foodstuff Industry: flour, starch, grain, milk powder, food additive.

Big Bag Discharge Station

Plastic production industry has to provide enough raw material storing for constantly production process. There are two ways of storing in the market; first one is using 25 kg bags, this way is suitable for low production capacity companies and easy for carrying with human power. Second one is suitable for high production capacity with bags of 500 kg, 1000 kg and highest capacity big bags, but they are not easy to carry by human power, to handle with them it helps big bag discharge station for emptying these units at the production.

System features
1. Positive-displacement conveying device can realize conveying and computing powder, easy centralized control, increasing degree of automation and satisfying requirements against environmental protection of modern enterprises.
2. Compact conformation, little space usage, tridimensional conveying direction.
3. Flanges between inlet and outlet are airtight, then there is no need to install filter. When conveying powder, it can be feed in air and can assure that there is no dust spread into environment.
4. Powder is conveyed smoothly along the lines almost with none inside movement; therefore, there is little dilapidation against materials, slow curve conveying make little material granule into scraps.
5. According to different feeding conditions, distance between inlets can exceed 10m.
6. Chain wheel has been under hardening with minimum abrasion
7. Special transfer dish with extremely low coefficient friction and stable delivery capacity.
8. all our tube chain conveyors use our own computer program for different parts such as conveying line and curve parts to maintain necessary static friction and pullup and providing precise data to reach to low noise and little abrasion.
9. three dimension to convey: horizontal, inclining and vertical mix.

Dimensions sheet
