Product Details:
|
| Name: | Powder Mixer | After-sarles Service: | Video And Online Support |
|---|---|---|---|
| Used For: | PVC,rubber,chemical,food Industry | Motor: | Siemens Beide Brand |
| Capacity: | 500-2500kg/hour | Inverter: | ABB |
| High Light: | 1500L PVC Mixer Machine,PVC Mixer Machine 500kg/hour,lab powder blender 2500kg/hour |
||

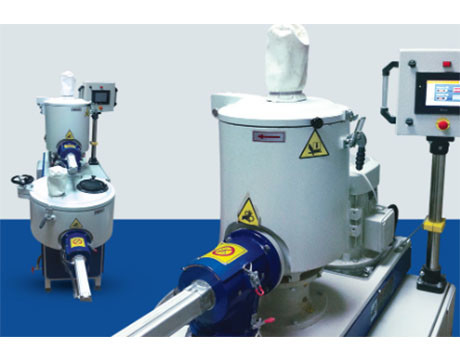

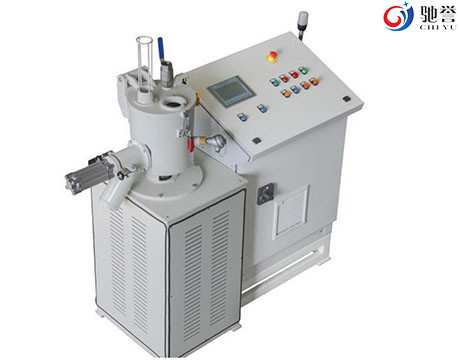

Laboratory Mixer Turbo Mixer PVC compounding system
The laboratory mixer is the smallest in ChiYu product line and is therefore particularly well-suited for mixing
small amounts. They are often needed for new recipe, production monitoring or for product development, for example. But in
spite of its compact size and a usable volume from 10 to 50 liters, the little mixer is extremely powerful and versatile.
USAGE AREAS OF MIXER
New formulations
Laboratory
Process engineering
Application technology
Product development
Production monitoring
.
Technical data:
| Type | Total capaicty litres | Weight per batch kgs | Motor power KW |
| SHR10 | 10 | 5 | 5 |
| SHR50 | 50 | 25 | 11 |
| SHR100 | 100 | 60 | 15 |
| SHR200 | 200 | 100 | 75 |
| SHR300 | 300 | 150 | 90 |
| SHR500 | 500 | 200 | 90 |
| SHR800 | 800 | 300 | 160 |
| SHR1000 | 1000 | 250 | 200 |
| SHR1500 | 1500 | 450 | 250 |
| SHR2000 | 2000 | 900 | 560 |
ChiYu’s combined heating/cooling mixers are the optimum solution for complex mixing challenges. The systems are characterized by their outstanding product preparation in the heating phase and high-efficiency cooling performance. The horizontal and vertical heating/cooling mixers are designed for high-volume throughput, rapid processing and short cleaning times.
