Product Application

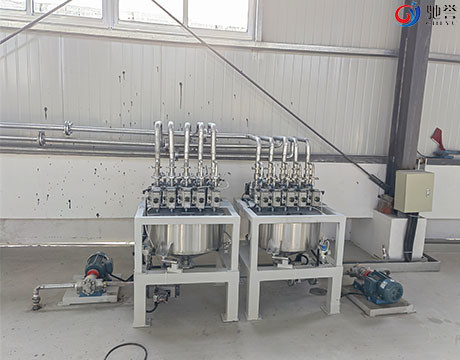

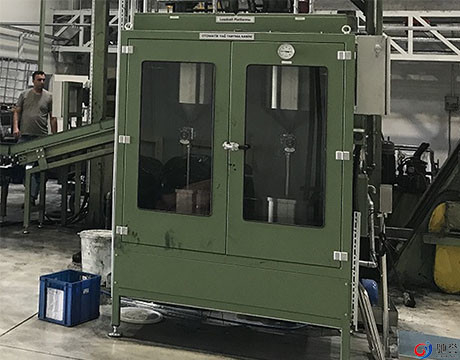

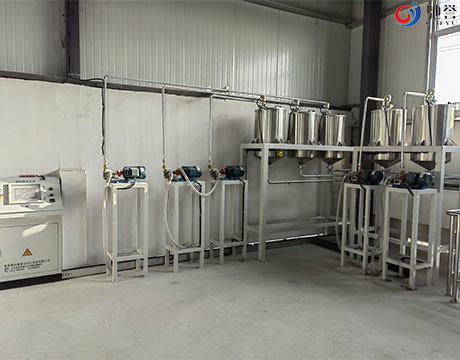

Process Oil dosing is done by weighing the oils with different properties in the desired quantity from main tanks, intermediate tanks, IBC tanks or barrels by means of gear pump, weighing them on weighing pan by means of valves, then transferring to the conveying pan and in turn sending to the mixer by a gear pump. The weighing accuracy is between 5-10g provided that it is not a very hard fluid. In our systems, we work with the highest quality materials, pumps, valves and sensors in order to continue the production of our customers without stopping. One of the most important issues in oil weighing is to ensure the fluidity, and the required viscosity is ensured by heating in both stock tanks and weighing cabins as well as in our pipelines.

In oil weighing, if we work with oils that should not be mixed with each other, even if they must not contact, we offer solutions according to the wishes of our customers by using different oil weighing scales, conveying pans, pumps and separate pipelines.

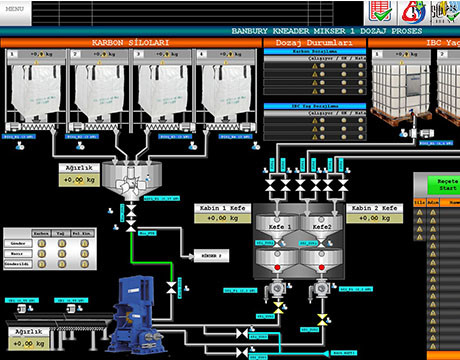

Our oil dosing systems are fully PLC controlled and have the option of reporting with SCADA software if desired. Siemens, Allen Bradley or Mithubishi PLC are used according to the demand of our customers. According to the recipe structure created, the feeding can be made in 1 or 2 times in the same batch if desired. Our systems can send the weighed material directly into the mixer by communicating with the fully automated mixers as well as sending the material after the operator chooses the recipe from the touch screen panel and the material is

weighed.

Main Features
1. Container with high temperature insulation materials, anti-aging polyurethane foam or EPE.
2. The interface uses the international standard ISO quick chuck, liner made of imported stainless steel SUS316L or SUS304 manufacturing, the inner surface of the mirror-polished to Ra≤0.4m, the outer surface of the cast matte, glossy, matt sandblasted or cold colors.
3. Agitator seal imported sanitary mechanical seals or magnetic stirring sealed stirring device, stirring speed optional.
4. The nozzle has a level gauge port (static pressure, capacitive, non-contact, ultrasonic, glass tube), mouth breathing air,thermometer (digital display or dial type), CIP cleaning mouth, depending on the mirror, depending on the light-proof (as endoscopic light integration), SIP sterilization mouth, and out of the liquid inlet and health manhole.
