Caco3 Auto Feeding Additive Dosing System For PVC Door Extrusion Line

Auto Feeding Dosing Mixing System For PVC Door Extrusion Line

Application and introduction

Chiyu Automation company offering dosing systems of the raw materials, compatible and ideal automation process for production line and different capacities according to its customers budgets and needs.Dosing systems weigh the PVC formulation automatically in desirable ratio by load cell very precisely and transfer them into feeding silos.The automation process of this system could be watched and controlled through PLC control monitor.The ratio of PVC formulation which is used in production could be changed and rearranged by the buttons on the operator panel.

1.Maximum capacity and efficiency

2.Saving from time

3.Save handwork

4.Additives used in each product provides the same rate and ensures the continuity of product quality.

5.Reduce waste

We are offering dosing systems of the raw materials, compatible and ideal automation process for production line and different capacities according to its customers budgets and needs

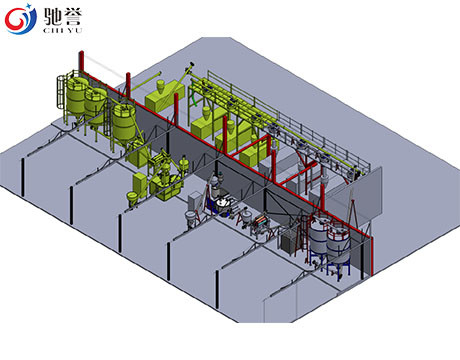

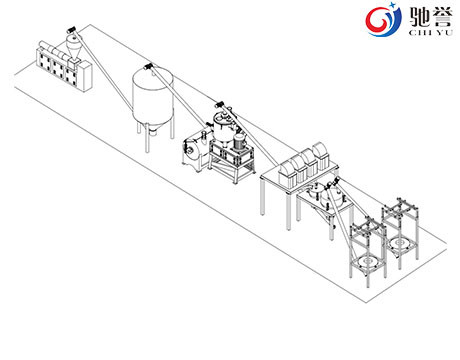

In order to solve these problems, our company design this PVC automatic mixing weighing conveying system which the computer can automatically control weighing and batching, and feeding to extruder.the complete PVC mixing system consists of:
1.Loading station(PVC loader+Caco3 loader).
2.Pneumatic vacuum conveying system.
3.PVC/Caco3 storage silo.
4.Vacuum conveyor with automatic weighing system for mixer.
5.PVC mixer machine.
6.Compound storage silo.
7.Automatic feeding system for extruder.
