Product Details:
|
| Name: | Powder Mixer | After-sarles Service: | Video And Online Support |
|---|---|---|---|
| Used For: | PVC,rubber,chemical,food Industry | Motor: | Siemens Beide Brand |
| Capacity: | 500-2500kg/hour | Inverter: | ABB |
| High Light: | 3500kg/h Plastic Mixer Machine,Vacuum Plastic Mixer Machine,500kg/h high speed mixer for pvc compounding |
||

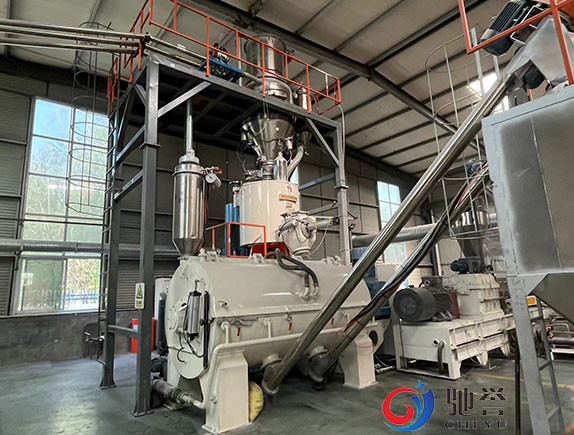

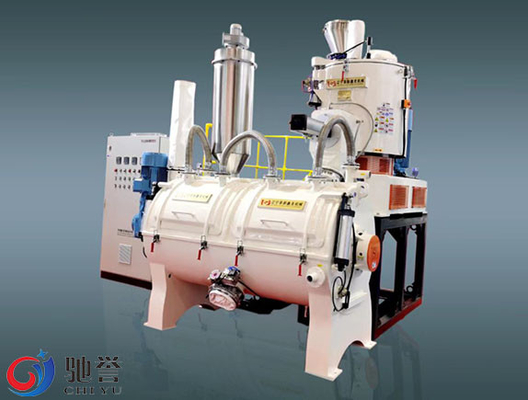

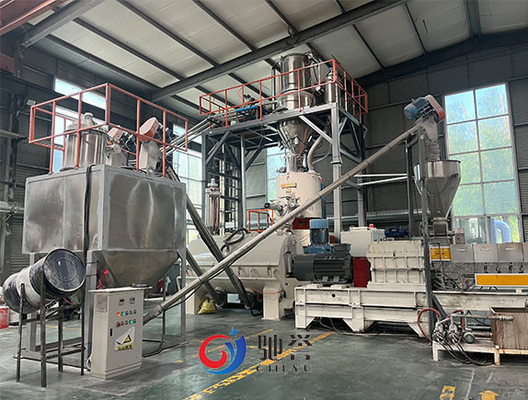

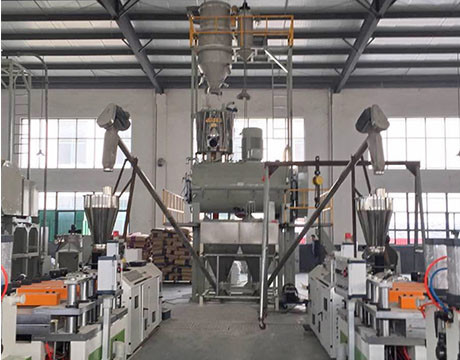

Plastic Mixing Machine PVC Mixer With Vacuum Conveying Dosing System
The plastic mixing department is the heart of every PVC processor. Given the large variety of applications and individual recipes, every Dry-Blend has its own challenges.To conquer these challenges and break down any barriers, a highly flexible mixing department is the key factor. Since the 60s, ChiYu has been a global strategic partner for the PVC application manufacturing state of the art mixers for decades.
High Throughput and Superlative Mixing Quality
1.Process-optimized mixing tools for optimum energy input and gently mixing.
2.Vortex-enhancing design of blades and vessels, to ensure 100% homogenization.
3.Newly engineered cooler stirrers for increased cooling performance and better double-batching-performance.
4.Output range from 500 kg/h to 3500 kg/h
Technical data:
| Type | Total capaicty litres | Weight per batch kgs | Motor power KW |
| SHR200 | 200 | 90 | 45 |
| SHR250 | 250 | 110 | 55 |
| SHR300 | 300 | 140 | 75 |
| SHR400 | 400 | 180 | 90 |
| SHR500 | 500 | 220 | 110 |
| SHR600 | 600 | 260 | 132 |
| SHR700 | 700 | 310 | 160 |
| SHR800 | 800 | 360 | 200 |
| SHR1000 | 1000 | 450 | 250 |
| SHR1500 | 1500 | 675 | 355 |
| SHR2000 | 2000 | 900 | 560 |
ChiYu’s combined heating/cooling mixers are the optimum solution for complex mixing challenges. The systems are characterized by their outstanding product preparation in the heating phase and high-efficiency cooling performance. The horizontal and vertical heating/cooling mixers are designed for high-volume throughput, rapid processing and short cleaning times.
