Product Details:
|
| Name: | Powder Mixer | After-sarles Service: | Video And Online Support |
|---|---|---|---|
| Used For: | PVC,rubber,chemical,food Industry | Motor: | Siemens Beide Brand |
| Capacity: | 500-2500kg/hour | Inverter: | ABB |
| High Light: | Horizontal Type Plastic Mixer Machine OEM,Plastic Mixer Machine iso9001,Cooler Combination mixer machine |
||

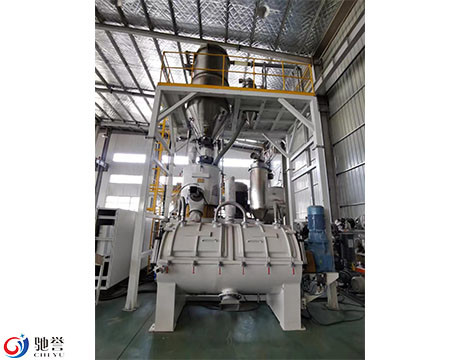

Horizontal Type Heater – Cooler Combination PVC Mixer
The Heater – Cooler Combination PVC Mixer
Equipped with horizontal cooling mixer are an essential
and integral part of high performance processing units.
Ideal appliance for the fast preparations of mixes in general
and PVC compounds in particular, mixer models available
in configurations depending of the capacity and materials
designed for each specific production requirement
Universal usable
Available with different drive options
High throughtput rates with optimal mixing quality
Low operating costs
Compact design
.
High Throughput and Superlative Mixing Quality
1.Process-optimized mixing tools for optimum energy input and gently mixing.
2.Vortex-enhancing design of blades and vessels, to ensure 100% homogenization.
3.Newly engineered cooler stirrers for increased cooling performance and better double-batching-performance.
4.Output range from 500 kg/h to 3500 kg/h
Technical data:
| Type | Total capaicty litres | Weight per batch kgs | Motor power KW |
| SHR200 | 200 | 90 | 45 |
| SHR250 | 250 | 110 | 55 |
| SHR300 | 300 | 140 | 75 |
| SHR400 | 400 | 180 | 90 |
| SHR500 | 500 | 220 | 110 |
| SHR600 | 600 | 260 | 132 |
| SHR700 | 700 | 310 | 160 |
| SHR800 | 800 | 360 | 200 |
| SHR1000 | 1000 | 450 | 250 |
| SHR1500 | 1500 | 675 | 355 |
| SHR2000 | 2000 | 900 | 560 |
ChiYu’s combined heating/cooling mixers are the optimum solution for complex mixing challenges. The systems are characterized by their outstanding product preparation in the heating phase and high-efficiency cooling performance. The horizontal and vertical heating/cooling mixers are designed for high-volume throughput, rapid processing and short cleaning times.
