Product Details:
|
| Name: | Powder Mixer | After-sarles Service: | Video And Online Support |
|---|---|---|---|
| Used For: | PVC,rubber,chemical,food Industry | Motor: | Siemens Beide Brand |
| Capacity: | 500-2500kg/hour | Inverter: | ABB |
| High Light: | U Type Plastic Mixer Machine,Plastic Mixer Machine 500kg/hour,vacuum conveying system 2500kg/hour |
||

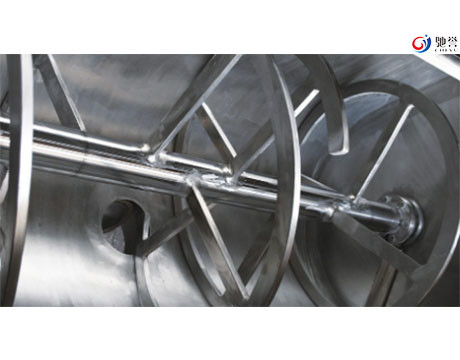

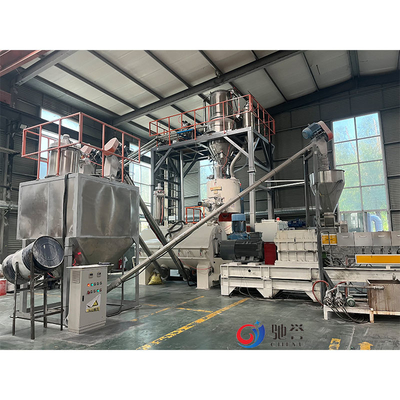

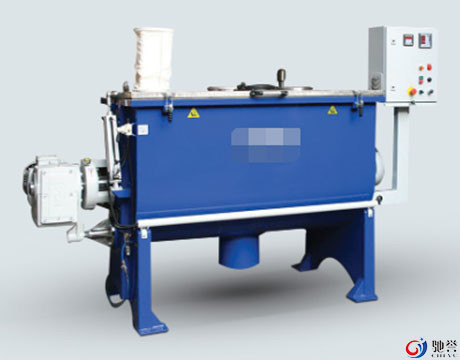

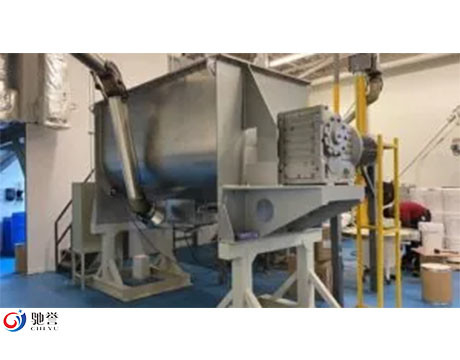

U-Type Proportional Mixer Vacuum Conveying Dosing System
Proportional Mixer U-type is suitable for use in all
areas in which high-quality materials are used. It is extremely
flexible and offers an usable volume from 1000 to 2500 liters,
depending upon model. Any desired mixing result can
be dependably obtained.
Wide range of uses
Available with cooling and heating options
Easy cleaning
Low operating costs
Compact design
• Powder coating
• Dye concentrates
• Additives (like TiO2, CaCo3)
• PVC (hard/soft) preparation
Technical data:
| Type | Total capaicty litres | Weight per batch kgs | Motor power KW |
| SHR200 | 200 | 90 | 45 |
| SHR250 | 250 | 110 | 55 |
| SHR300 | 300 | 140 | 75 |
| SHR400 | 400 | 180 | 90 |
| SHR500 | 500 | 220 | 110 |
| SHR600 | 600 | 260 | 132 |
| SHR700 | 700 | 310 | 160 |
| SHR800 | 800 | 360 | 200 |
| SHR1000 | 1000 | 450 | 250 |
| SHR1500 | 1500 | 675 | 355 |
| SHR2000 | 2000 | 900 | 560 |
ChiYu’s combined heating/cooling mixers are the optimum solution for complex mixing challenges. The systems are characterized by their outstanding product preparation in the heating phase and high-efficiency cooling performance. The horizontal and vertical heating/cooling mixers are designed for high-volume throughput, rapid processing and short cleaning times.
